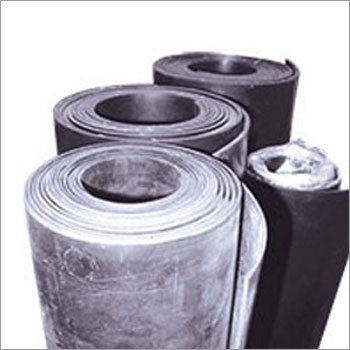

Rubber Sheets

Rubber Sheets
Rubber Sheets
Send Inquiry
Product Code : JR-01
Brand Name : JYOTI RUBBER
Price And Quantity
  • Unit of Measure
  • ,
Product Description
The Jyoti Rubber Industries is located in Mumbai, Maharashtra, India, widely known as a Manufacturer, Supplier, Trader and Exporter of Rubber Insertion Jointing, which is highly recommended for Air and Water Pressure. Our products are designed by using the high quality Natural or Synthetic rubber and modern techniques, under the directions of our team of diligent professionals. Furthermore, we are supplying the range of Rubber Insertion Jointing at market leading prices.

Application :
  • Used between flanges and similar joints subjected to water & air pressure.
  • The reinforcement fabric used shall have a minimum breaking load of 120 N/cm width for both warp and weft direction.

Other Details :

Construction

Rubber Composition

Manufactured out of Rubber compound of high quality Natural or Synthetic rubber or a blend thereof.

Reinforcement

The reinforcement fabric used shall have a minimum breaking load of 120 N/cm width for both warp and weft direction.

Colour & Finish

Unless otherwise specified colour shall be off-white having cloth marked finish on both surfaces.

Size

Thickness of Sheet, Permissible Tolerances, number of fabric plies, width and length shall be as given below :-


Thickness mm

Tolerance mm

No. of plies

Width (mtr.)

Length (mtr.)

1.5

+ 0.2

1

1.0

10.0

3.0

+ 0.3

2

1.0

10.0

5.0

+ 0.5

2

1.0

10.0

6.0

+ 0.6

3

1.0

10.0

8.0 & above

+ 0.7

4

1.0

as per agreement

Technical specifications :

Type

Tensile Strength Kgf/cm2

Elongation at break (percentage)

Hardness (IRHD)

Compression set (percentage)


Grade 1

Grade 2

Grade 1

Grade 2



A

85

60

400

350

50-65

35(Max)

B

85

60

300

250

66-80

35(Max)
