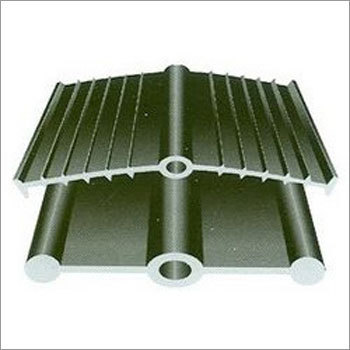

PVC Water Stop Seals

PVC Water Stop Seals
PVC Water Stop Seals
Product Code : JR-06
Brand Name : JYOTI RUBBER
Product Description

Advantages of PVC Water Stop Seals :

This seal is used as a sealant during the fixing stage or laying of concrete slab. The fixing place of this stop seal is predetermined and it is very easy to fix it or install it. Moreover, you can weld this PVC Water Stop Seal very easily at site and that too at the needed angle and shape.

Applications of PVC Water Stop Seals:

A plasticized PVC compound forms the basis of its profile. Since the compound is specially manufactured, it allows the seal to fulfill the exact demands of the building industry. The use of PVC Water Stop Seals can be understood as a device which is used for protection against assumed discomfiture - a common problem in concrete structure caused due to frictional impasse, climatic effects and Geo-disturbances. The said phenomenon helps in contraction as well as expansion in the entire concrete structure that further leads to leakage/seepage of water causing cracks or dismemberment.

Scope of PVC Water Stop Seals:

This PVC Seal is used in Basements, Bridges, Canals, Dams and High Rising Multi Storey Buildings. Further to this, there are many more uses of this seal in concrete structures like Over Head/Under Ground Water Tanks, Retaining Walls, Road Embankments and Swimming Pools.

Range:

We offer PVC water stopping seals in multiple formulations and specifications that allows it to be used in concrete structures that can be either water retaining and non-water retaining. In this range, we can offer various constructions such as Ribbed, Ribbed with central bulbs, Dumb Bell and Kicker. This range is also available in sizes from 80 mm to 305 mm width.

Technical Specification :

Density

1.32 kg/l

Service Temperature

-200C, +570C

Tensile Strength

14 n/mm2

Elongation at Break

300% min

Maximum Hydrostatic head for thickness 3-12 mm

10-60 mtrs.

Conforming to IS 12200 OF 1987

Hydrostop type

Width mm

Thickness mm

Safe-Hydraulic Pressures

Description and suitability

150 B

150

4 to 5

25

For low hydro-static pressure heads, used in exp./ contraction joints.

150 AU

150

6

32

For moderate pressure in RCC wall or slab. wall/slap not less thicker than 150 mm.

150A

150

8 to 11

40

For high Hydro-static heads, in expansion/ contraction joints.

180 X E

180

10

45

For high expansion/contraction and where differential settlement is expected.

230 G

230

4 to 5

30

For medium pressure heads and wall not less thicker: than 230 mm.

230 GU

230

6

36

For medium pressure heads, for construction and expansion/contraction joints.

225/230D

225/230

8 to 11

50

For High heads, utility same as 230 GU.

230 KE

230

5

25

Surface type, for expansion/contraction joints.

230 KD

230

5

25

For construction joints, externally placed type of PVC waterstop.

240 RS

240

5

25

Multi Ribs and serrations, Ideal waterstop for construction joints.

240 H

240

8 to 10

42

For moderate to high pressure heads, used in Power Houses & other important RCC structures.

230 XA

230

10

40

For high expansion/contraction & settlement joints.

230 XB

230

5

25

For medium pressure, utility same as 230 XA.

300 LU

300

6

35

Multi Ribbed and serrated, Ideal waterstop for under- ground structures, in expansion/contraction joints.

300 LUNB

300

6

35

Ditto as above but without central bulb for construction joints.

300 N

300

10

52

As per IS 12200 of 1987, Sketch shown, in the Dams, syphons, Aqueducts etc.

305 F

305

9 to 12

60

A standard design of CWC for Dams & other Hydraulic structures with high pressure heads.

320 KY

320

5

30

Surface type, with wooden crack inducer, but same as 320 KZ.

320 KZ

320

5

30

Surface type without crack inducer, used for construction joints, approved design of CPWD.

150 XX

150

5

20

Dumb-bell type, with double central bulb specially developed for Larson & Toubro ECC construction group.

150 IS

150

7.5

35

Replaceable without central bulb.

300 IS

300

10

50

Replaceable type with a trapezoidal central bulb protruded on the same face where semi circular solid end bulbs are projected to ensure basic grip.

NCL




To be used in Canal lining as Longitudinal joint (contraction joint) in cement concreate lining when concrete is in plastic condition.

NCT




To be used in Canal lining as Transverse joint (Expansion joint) in cement concreate lining when concrete is in plastic condition.
